Couplers
FAQ
An RF coupler is a passive microwave component designed to sample, monitor, split, or route RF signals within a communication system. RF and microwave couplers are widely used in radar systems, satellite communications, wireless infrastructure, aerospace electronics, defense platforms, and RF test and measurement equipment. They enable accurate signal monitoring, power measurement, system diagnostics, and performance optimization without significantly affecting the main signal path.
Yusntech offers a range of RF and microwave couplers, including directional couplers and dual directional couplers. These products are designed for applications such as RF power monitoring, signal sampling, reflected power measurement, VSWR testing, antenna characterization, and transmitter performance evaluation. Additional custom coupler solutions can be developed to meet specific customer requirements.

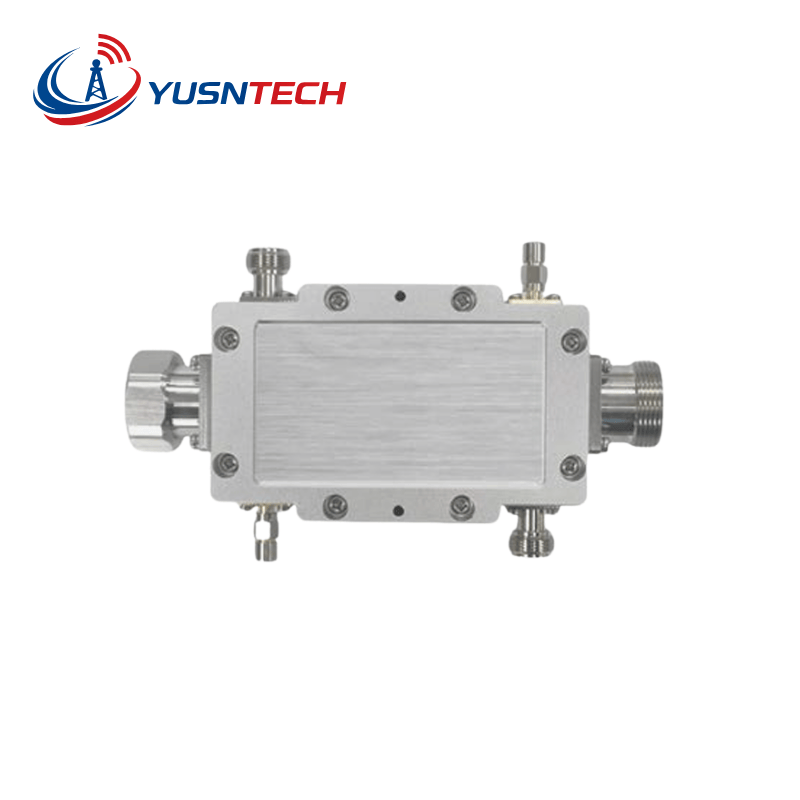

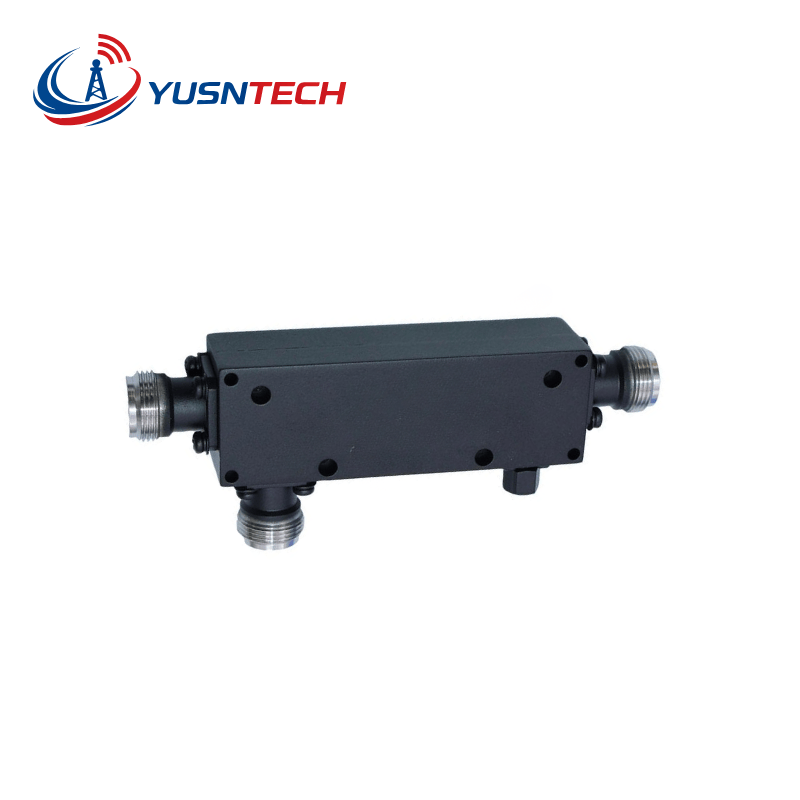

A directional coupler samples RF power in one direction, while a dual directional coupler simultaneously monitors both forward and reflected signals. Dual directional couplers are commonly used in systems where real-time VSWR monitoring, return loss measurement, and antenna matching analysis are required. Both types provide reliable performance for RF communication and microwave testing applications.
Yusntech RF couplers cover a wide range of frequencies from low-frequency communication bands to microwave and millimeter-wave applications. Our couplers support frequencies from kilohertz ranges up to tens of gigahertz, making them suitable for HF, VHF, UHF, L-band, S-band, C-band, X-band, Ku-band, Ka-band, and other advanced RF systems.
RF couplers are widely used in satellite communication systems, radar installations, aerospace platforms, military communication equipment, wireless networks, RF power amplifiers, EMC testing laboratories, semiconductor testing, research institutions, and microwave development projects. Their ability to provide accurate RF signal monitoring makes them essential components in modern communication systems.
The coupling factor determines how much power is sampled from the main transmission line. Common coupling values include 6 dB, 10 dB, 20 dB, 30 dB, 40 dB, 50 dB, and 60 dB. Lower coupling values provide stronger sampled signals, while higher coupling values minimize impact on the primary signal path. The optimal coupling factor depends on system power levels, measurement requirements, and application objectives.
Directivity is a key performance parameter that indicates a coupler’s ability to distinguish between forward and reflected signals. High-directivity couplers improve measurement accuracy, enhance RF system diagnostics, and provide more reliable data for antenna testing, transmitter monitoring, and VSWR analysis. High directivity is particularly important in precision microwave measurement systems.
Yes. High-power RF couplers are designed to withstand substantial RF power levels while maintaining stable electrical performance. Yusntech offers high-power couplers capable of handling applications such as radar transmitters, satellite earth stations, broadcast systems, RF power amplifiers, and industrial microwave equipment.
Yusntech RF couplers are available with SMA, N-Type, 2.92 mm (K), 1.85 mm (V), 7/16 DIN, and other industry-standard connectors. Connector selection depends on operating frequency, power handling requirements, environmental conditions, and system integration specifications.
In radar and SATCOM systems, RF couplers are used to monitor transmitter output power, reflected power, antenna performance, and overall system efficiency. Accurate power sampling helps engineers optimize signal quality, improve system reliability, and protect critical equipment from damage caused by impedance mismatches and excessive reflections.
Yes. Yusntech specializes in custom RF and microwave coupler solutions tailored to customer requirements. We can customize frequency ranges, coupling values, power ratings, connector interfaces, mechanical structures, and environmental specifications to support aerospace, defense, satellite communications, telecommunications, and RF testing applications worldwide.
Selecting the right RF coupler requires consideration of operating frequency, coupling value, directivity, insertion loss, VSWR, power handling capability, connector type, and installation environment. Yusntech’s engineering team can help identify the optimal coupler solution for RF power monitoring, antenna testing, signal sampling, radar systems, SATCOM terminals, and wireless communication networks.
