YUSNTECH provides a broad range of RF and microwave amplifiers, including Low Noise Amplifiers (LNAs), Power Amplifiers (PAs), Waveguide Low Noise Amplifiers, Waveguide Power Amplifiers, and other custom amplifier solutions. Our products cover frequencies from kHz to millimeter-wave bands above 100 GHz.

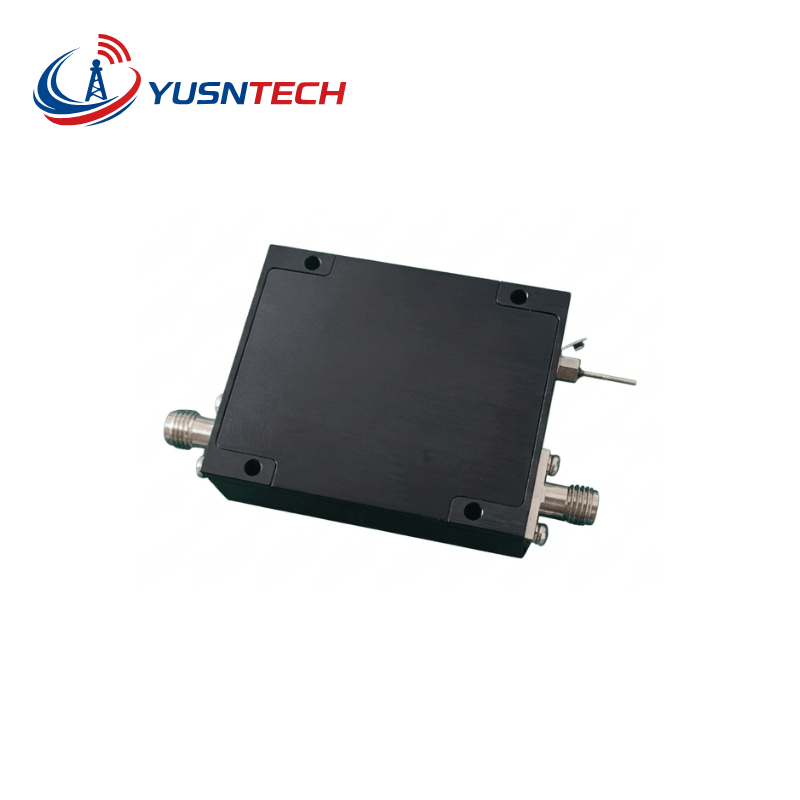

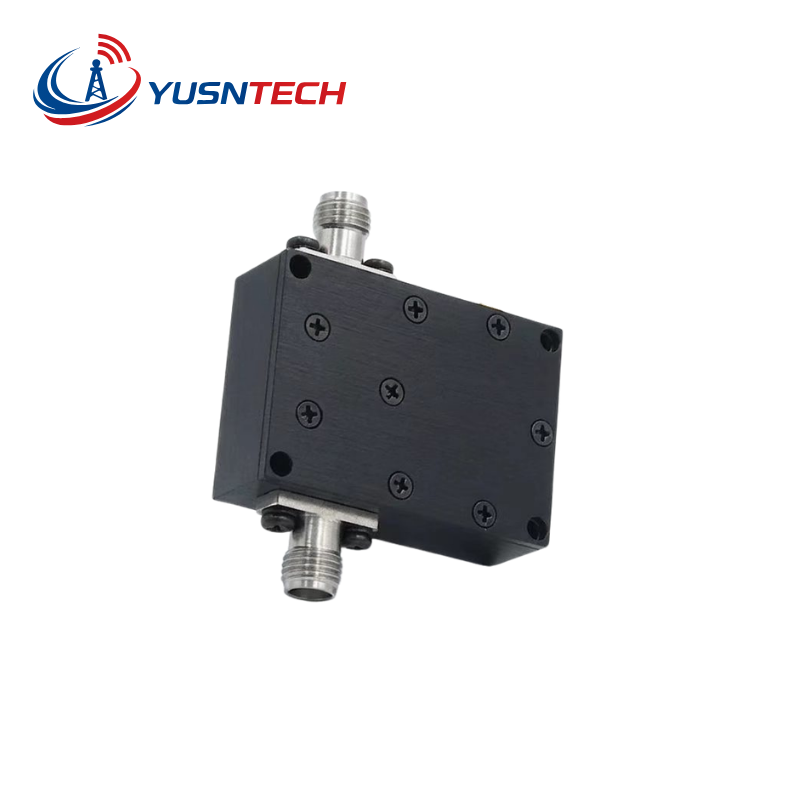

A low noise amplifier is designed to amplify extremely weak signals while introducing minimal additional noise, making it ideal for receiver front-end applications. A power amplifier is designed to increase signal power for transmission, enabling longer communication distances and stronger signal coverage. Many RF systems use both an LNA and a PA as part of the signal chain.

RF and microwave amplifiers are commonly used in satellite communications, radar systems, wireless infrastructure, aerospace electronics, electronic warfare, GPS systems, radio astronomy, defense applications, semiconductor testing, and laboratory measurement equipment. They are critical components wherever signal amplification is required.

RF amplifiers are available across a wide range of frequencies, from several kilohertz to more than 100 GHz. Depending on the application, amplifiers may be designed for narrowband, broadband, ultra-wideband, microwave, or millimeter-wave operation.

A broadband amplifier provides consistent gain across a wide frequency range rather than a single narrow frequency band. Broadband RF amplifiers are often used in test systems, electronic warfare platforms, communication infrastructure, and research laboratories where multiple frequency bands must be covered simultaneously.

Gain is the amount by which an amplifier increases the input signal level and is typically measured in decibels (dB). Higher gain allows weak RF signals to be amplified to levels suitable for transmission, processing, or measurement. The required gain depends on the overall system design and signal chain architecture.

Noise figure measures the amount of noise introduced by an amplifier relative to an ideal amplifier. A lower noise figure improves receiver sensitivity and signal quality, making it one of the most important parameters for low noise amplifiers used in satellite communications, radar receivers, and wireless systems.

Output power represents the maximum RF power that an amplifier can deliver to a load. It is typically specified in watts or dBm. Selecting the appropriate output power is essential for achieving desired communication range, signal strength, and system performance.

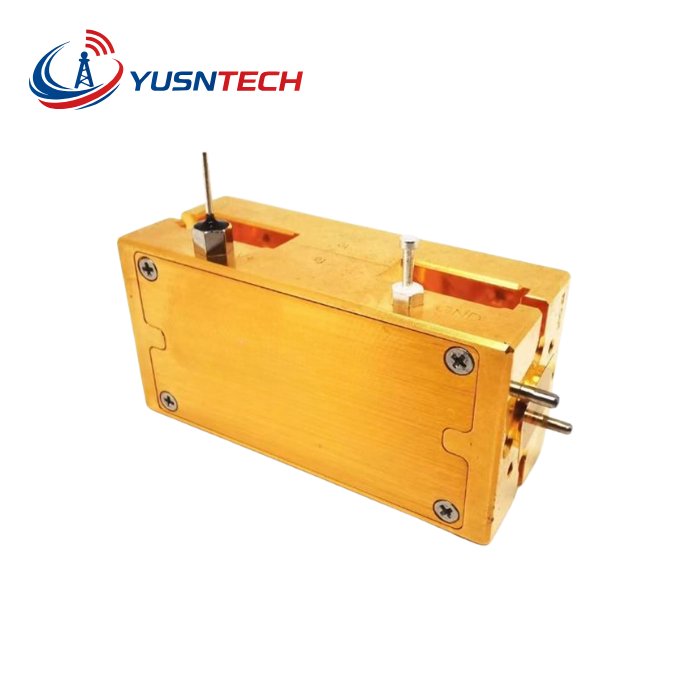

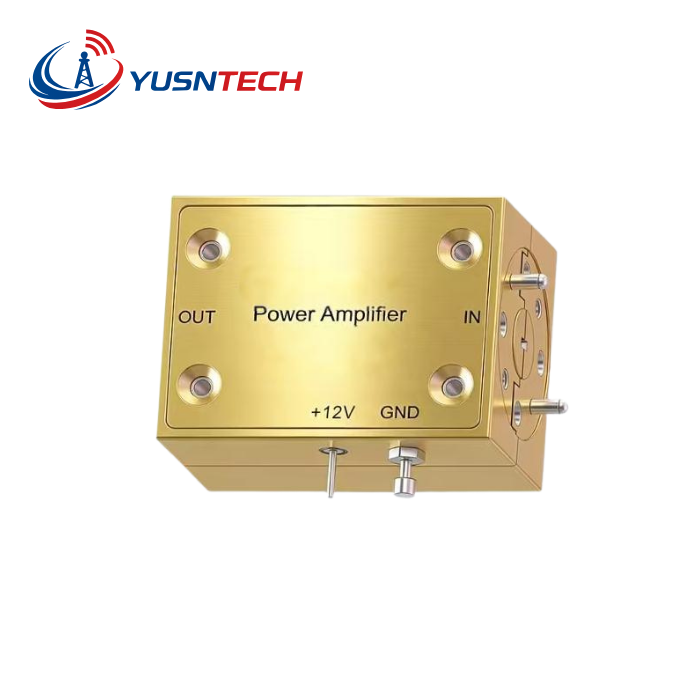

Coaxial amplifiers use RF connectors such as SMA, N-Type, 2.92 mm, or 2.4 mm interfaces and are widely used across most RF and microwave frequencies. Waveguide amplifiers use waveguide interfaces and are typically preferred at millimeter-wave frequencies where lower transmission loss and higher power handling capabilities are required.

When selecting an RF amplifier, key considerations include frequency range, gain, output power, noise figure, gain flatness, VSWR, connector type, operating voltage, environmental conditions, and mechanical size. The ideal amplifier depends on the specific requirements of the intended RF system.

Yes. Custom RF amplifiers can be designed to meet specific frequency ranges, gain levels, power outputs, connector types, mechanical dimensions, environmental requirements, and system integration needs. Customization is commonly requested for aerospace, defense, SATCOM, and research applications.

RF amplifiers are widely used in satellite communication systems for both receiving and transmitting signals. Low noise amplifiers improve receiver sensitivity, while power amplifiers increase transmit signal strength to support reliable satellite links.

Radar systems rely on amplifiers to improve both signal transmission and signal reception. Power amplifiers help increase detection range by boosting transmitted signals, while low noise amplifiers improve target detection sensitivity by enhancing weak return signals.

RF amplifiers are used throughout the telecommunications, satellite communications, aerospace, defense, electronic warfare, automotive radar, semiconductor manufacturing, scientific research, medical technology, and test & measurement industries.

Microwave amplifiers typically operate from hundreds of megahertz to tens of gigahertz, while millimeter-wave amplifiers generally cover frequencies above 30 GHz. Millimeter-wave amplifiers are increasingly used in 5G, 6G, high-resolution radar, imaging systems, and advanced wireless communication networks.

YUSNTECH offers a comprehensive portfolio of RF, microwave, and millimeter-wave amplifiers featuring low noise, high gain, excellent reliability, and customizable configurations. Our amplifier solutions support applications ranging from wireless communications and satellite systems to radar, aerospace, defense, and RF testing worldwide.
