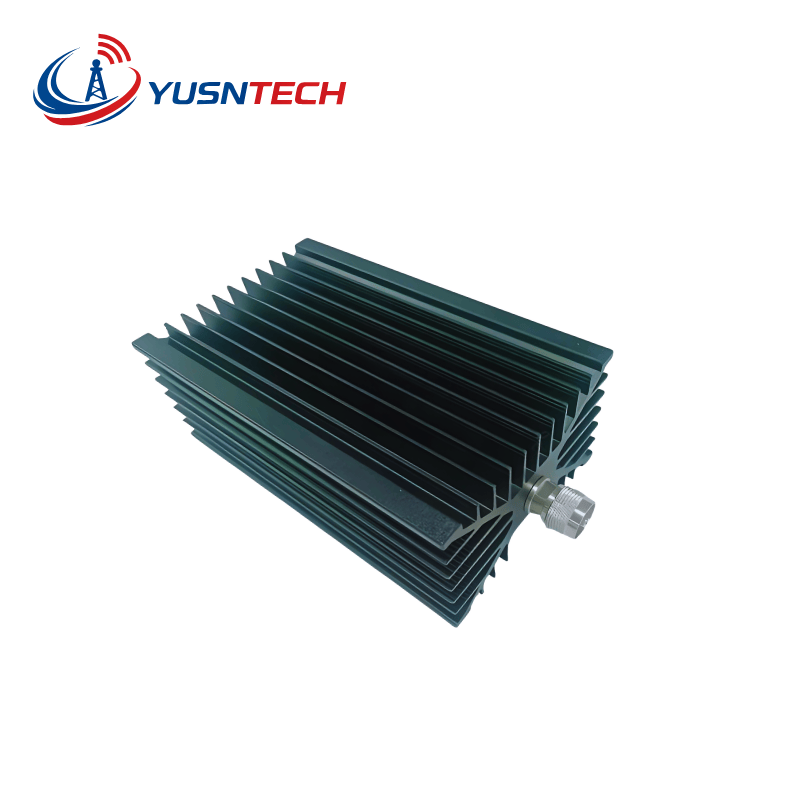

Coaxial Terminations are used with coaxial connectors such as SMA, N, 2.92 mm, 2.4 mm, or 1.85 mm for broadband RF applications. Low PIM Terminations are specially designed to minimize passive intermodulation distortion, making them ideal for cellular infrastructure, DAS, and 5G base stations. Waveguide Terminations absorb microwave energy inside rectangular waveguides and are widely used in radar, satellite communication, and high-power microwave systems.

Selecting the right RF termination depends on operating frequency, power handling, impedance, connector or waveguide type, VSWR requirement, environmental conditions, and whether low PIM performance is required. Engineers should also consider continuous power versus peak power, operating temperature, and installation environment. Yusntech offers engineering support to help customers select the most suitable RF termination for new designs or replacement applications.

RF terminations are available in a wide range of power ratings, from less than 1 W for laboratory measurements to hundreds or even thousands of watts for high-power transmitters. Choosing the correct power rating ensures long-term reliability and prevents overheating during continuous operation.

A low VSWR indicates that the termination closely matches the transmission line impedance, minimizing reflected power and maximizing energy absorption. High-performance RF terminations typically feature low VSWR across their operating frequency range, helping improve measurement accuracy and protect RF amplifiers and transmitters.

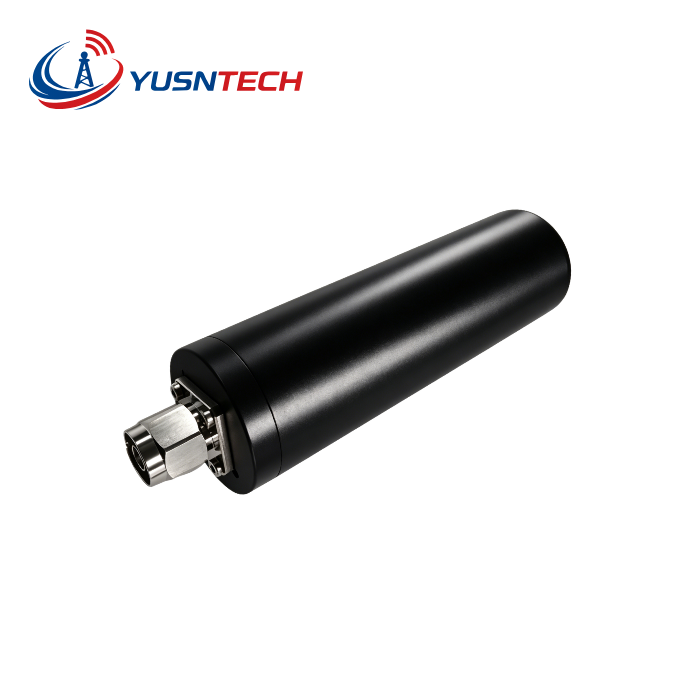

Low PIM (Passive Intermodulation) Terminations are specifically engineered to reduce unwanted intermodulation products generated by high-power multi-carrier signals. They are widely used in 4G LTE, 5G NR, public safety networks, distributed antenna systems (DAS), and indoor coverage systems where maintaining excellent signal quality is critical.

Low PIM performance is typically expressed in dBc, such as -155 dBc, -160 dBc, or even lower under standardized two-tone test conditions. Lower PIM values indicate better linearity and reduced interference, which is especially important for modern cellular communication networks.

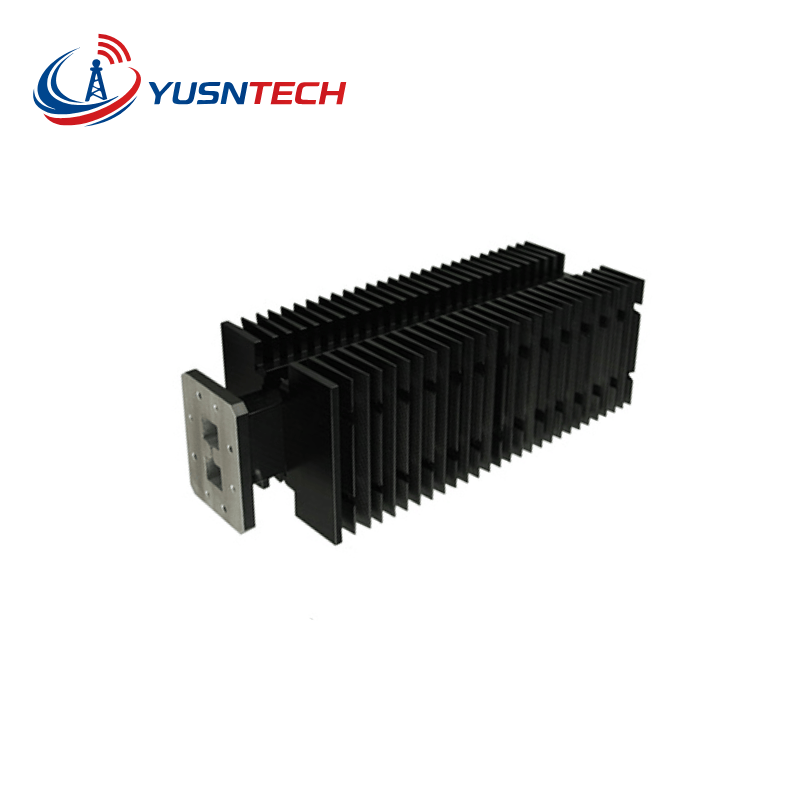

Waveguide Terminations are designed to absorb microwave energy propagating inside waveguides while preventing reflections. They are commonly used in radar systems, satellite ground stations, microwave transmitters, laboratory testing, electronic warfare equipment, and high-frequency communication systems where high power handling and excellent return loss are required.

Yes. Broadband RF terminations are available for frequencies ranging from DC up to millimeter-wave bands, depending on the connector type and design. Broadband loads are commonly used in test and measurement, RF production testing, aerospace, and broadband communication systems where multiple frequency bands must be covered.

Yes. Yusntech provides OEM and custom RF termination solutions based on customer requirements. Customization options include frequency range, power handling, connector type, impedance (50 Ω or 75 Ω), Low PIM performance, waveguide standards, flange configuration, environmental sealing, materials, and mechanical dimensions for specialized RF and microwave applications.

Proper RF terminations safely dissipate unused RF power and reduce reflected signals that may damage expensive RF amplifiers, transmitters, power combiners, directional couplers, or sensitive measurement instruments. Using the correct termination improves both equipment reliability and system performance.

RF terminations are widely used in wireless communications, 5G infrastructure, satellite communications, radar systems, aerospace, defense, electronic warfare, IoT, RF test and measurement, semiconductor testing, research laboratories, and microwave component manufacturing.

High-quality RF terminations should offer low VSWR, excellent return loss, accurate impedance matching, reliable power handling, stable electrical performance, and robust mechanical construction. For mission-critical applications, customers often require full RF test data, including S-parameters, insertion characteristics, VSWR reports, and PIM test results where applicable.

Yes. Yusntech supports everything from engineering prototypes and low-volume development builds to high-volume OEM production. With extensive experience in RF and microwave passive components, we provide fast response, technical consultation, custom design support, and reliable manufacturing for customers worldwide.

Yusntech offers a comprehensive portfolio of RF and microwave terminations, including Coaxial Terminations, Low PIM Terminations, and Waveguide Terminations. Our products are designed for demanding commercial, industrial, aerospace, and defense applications, with support for custom frequency ranges, connector types, power levels, and mechanical configurations. Combined with rapid engineering support, competitive lead times, and complete RF test data, Yusntech helps customers shorten development cycles while ensuring dependable RF performance.
